NUGGET MACHINE FM-480KE-N

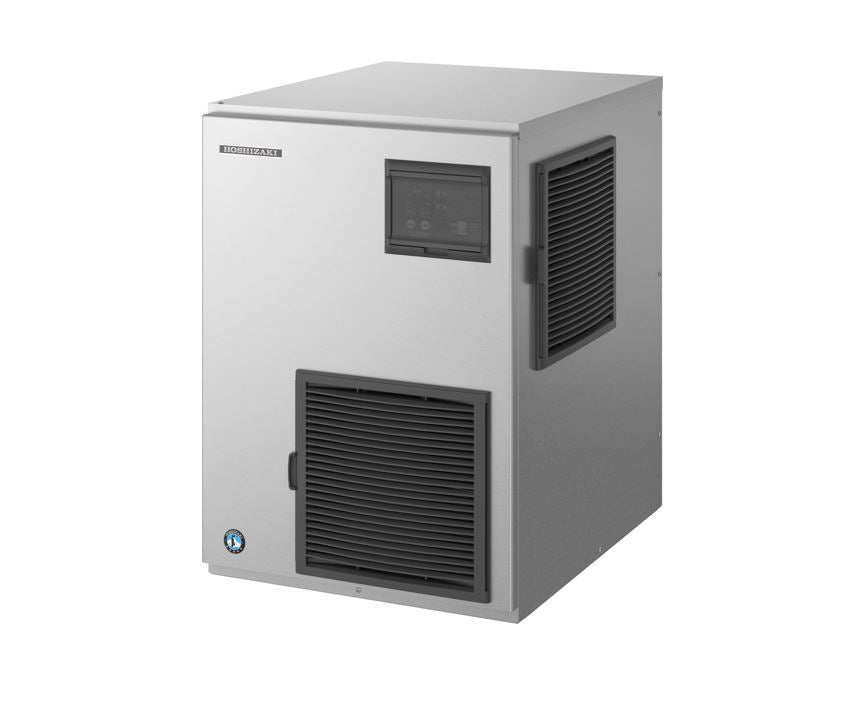

Hoshizaki FM-480AKE-N Nugget Ice Maker – 430kg/24hr

PURE & COOL NUGGET ICE MAKER

The Hoshizaki FM-480AKE-N is a modular nugget ice maker, ideal for fresh food, fish and beverage displays. It uses an advanced auger system to efficiently produce up to 430kg of soft, chewable nugget ice per day, with water consumption equal to ice output — minimising waste and maximising reliability.

The auger-driven system also helps eliminate “freeze burn” when used for food display. Built for durability, it includes carbon auger bearings and a robust automatic flush cycle that reduces maintenance demands. The integrated controller display makes operation and troubleshooting easy.

Key Features:

Produces chewable, slow-melting nugget ice

Auger system ensures water efficiency

Carbon auger bearings for extended life

Helps prevent freeze burn on fresh produce

Automatic flushing system

Operational status display for easy diagnostics

2-year parts & labour warranty, 5-year compressor (parts only)

Ice Production Capacity:
– Approx. 430kg @ 10°C air / 10°C water
– Approx. 360kg @ 21°C air / 15°C water
– Approx. 290kg @ 32°C air / 21°C water

Max Storage Capacity:
Compatible with:
– 91000025, 91000026, 91000027, 91000053, 91000054 Ice Storage Bins

Cooling System: Air-cooled
Refrigerant: R404A

Electrical: 230V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 8.4A / Starting: 43A
Voltage Range: Rated Voltage ±10%

Operating Conditions:
– Ambient Temp: 5–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Dimensions:
– Width: 560mm
– Depth: 700mm
– Height: 780mm

Net Weight: 95kg / Packed Weight: 102kg
