KM-80C-HC DRAIN PUMP (NEW)

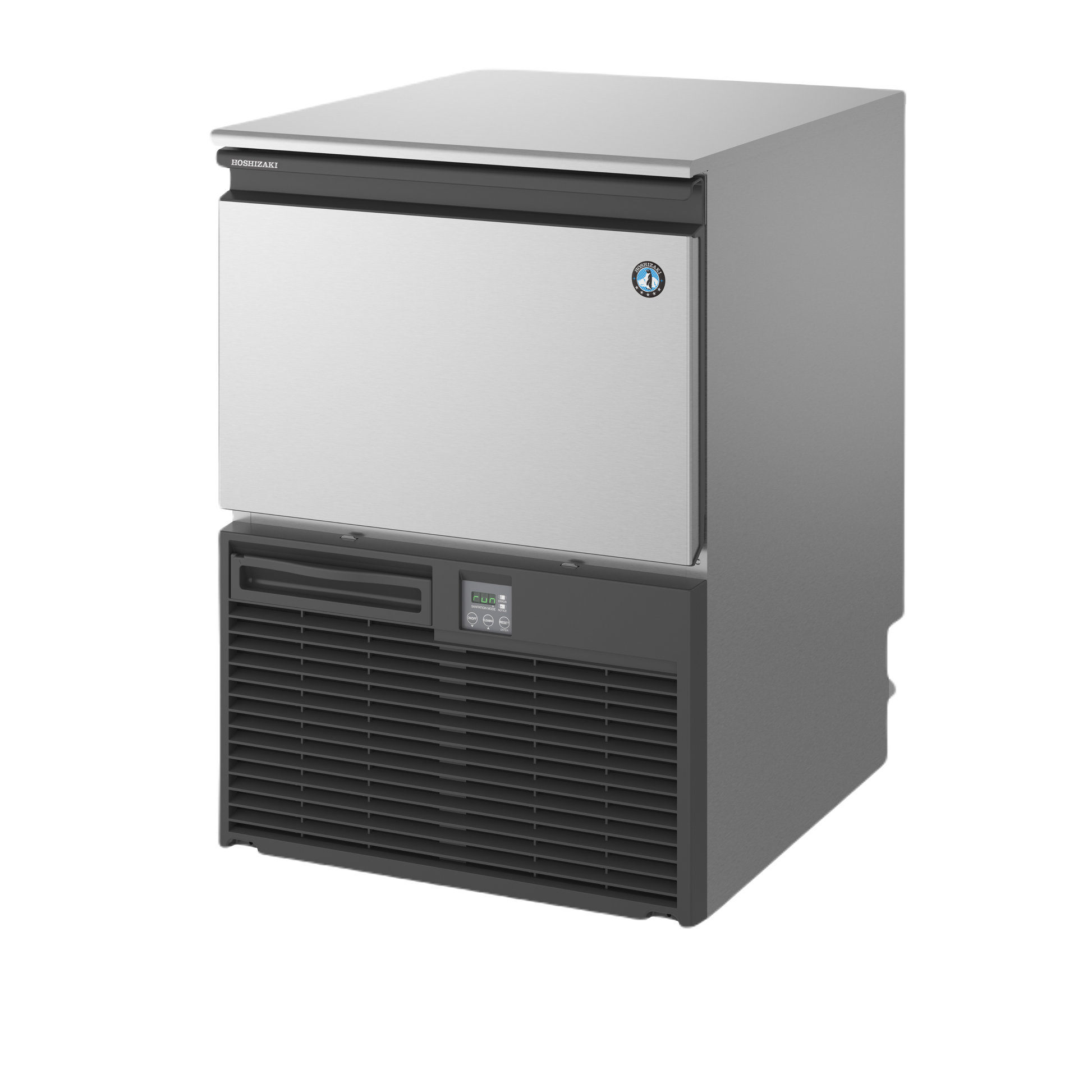

Hoshizaki KM-80C-HC DRAIN PUMP Crescent Edge Ice Maker – 68kg/24hr

The Hoshizaki KM-80C-HC DRAIN PUMP is a self-contained Crescent Edge ice maker that produces up to 68kg of high-quality ice per 24 hours. Engineered to meet strict hygiene standards, it’s perfectly suited for a wide range of commercial kitchen requirements.

Part of the advanced KM Edge range, this model includes a bonded evaporator surface to speed up harvest cycles—delivering more ice in less time and instantly increasing your service capacity.

Key Features:

Ice Production Capacity:
– Approx. 68kg/24hr @ 21°C air / 15°C water
– Approx. 55kg/24hr @ 32°C air / 21°C water

Storage Bin Capacity: Approx. 34kg

Freeze Cycle Time: Approx. 23 minutes

Ice Output per Cycle: Approx. 1.15kg / 130 pieces

Cooling System: Air-cooled

Refrigerant: R290 / 147g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug

Amperage: Running: 2.1A / Starting: 12.5A

Operating Conditions:
– Ambient Temp: 7–38°C
– Water Temp: 7–32°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 605mm
– Depth: 712mm
– Height: 842mm with hex bolt legs / 988mm with 150mm adjustable legs

Net Weight: 50kg / Packed Weight: 63kg

Optional Accessories:

87000104 Low Capacity Water Filter System

87000106 320mm Replacement Cartridge

87000148 Water Filter Kit & Gauge

87000146 Water Filter

81000116 Stainless Steel Hose

95001013 Adjustable Leg
