KM-60C-HC DRAIN PUMP

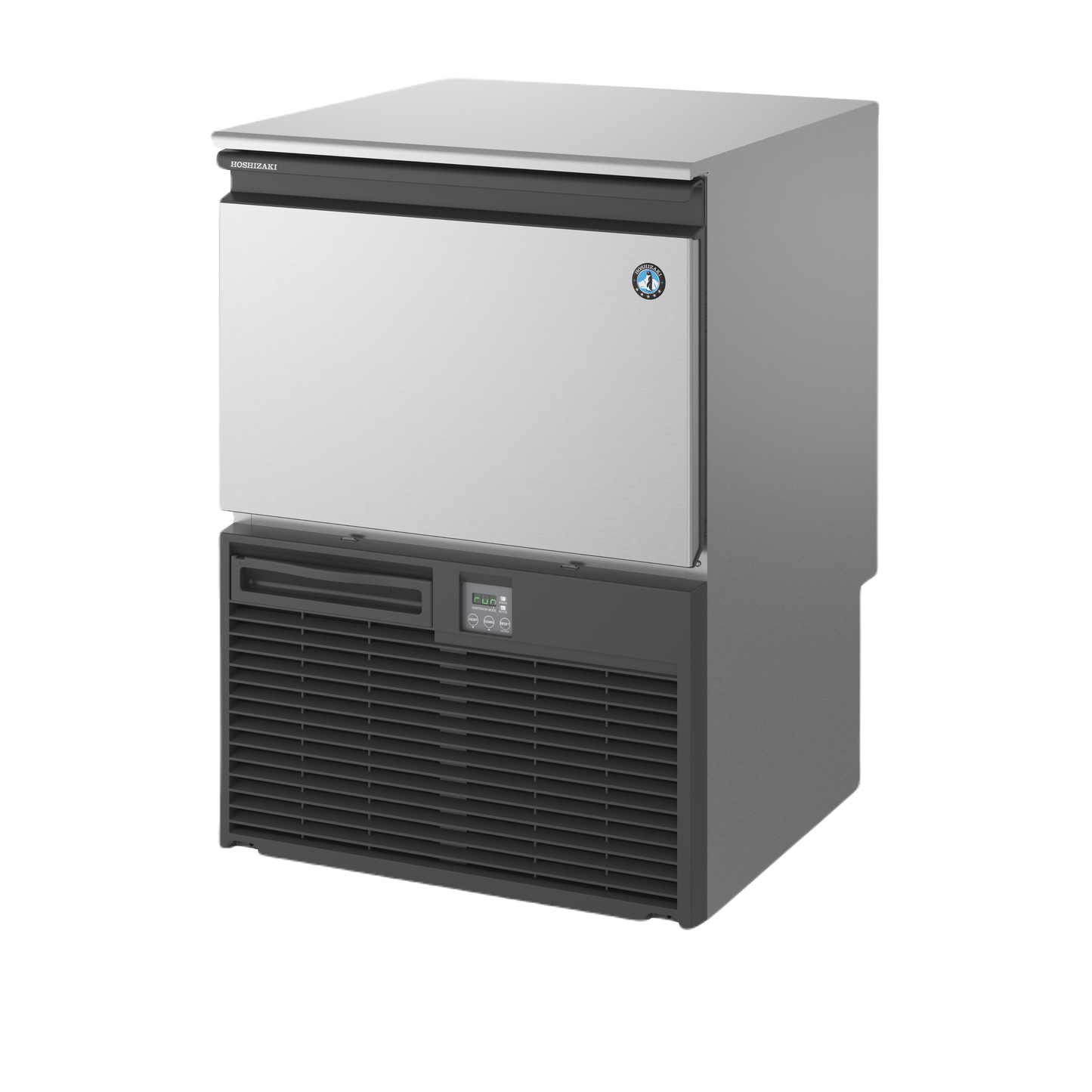

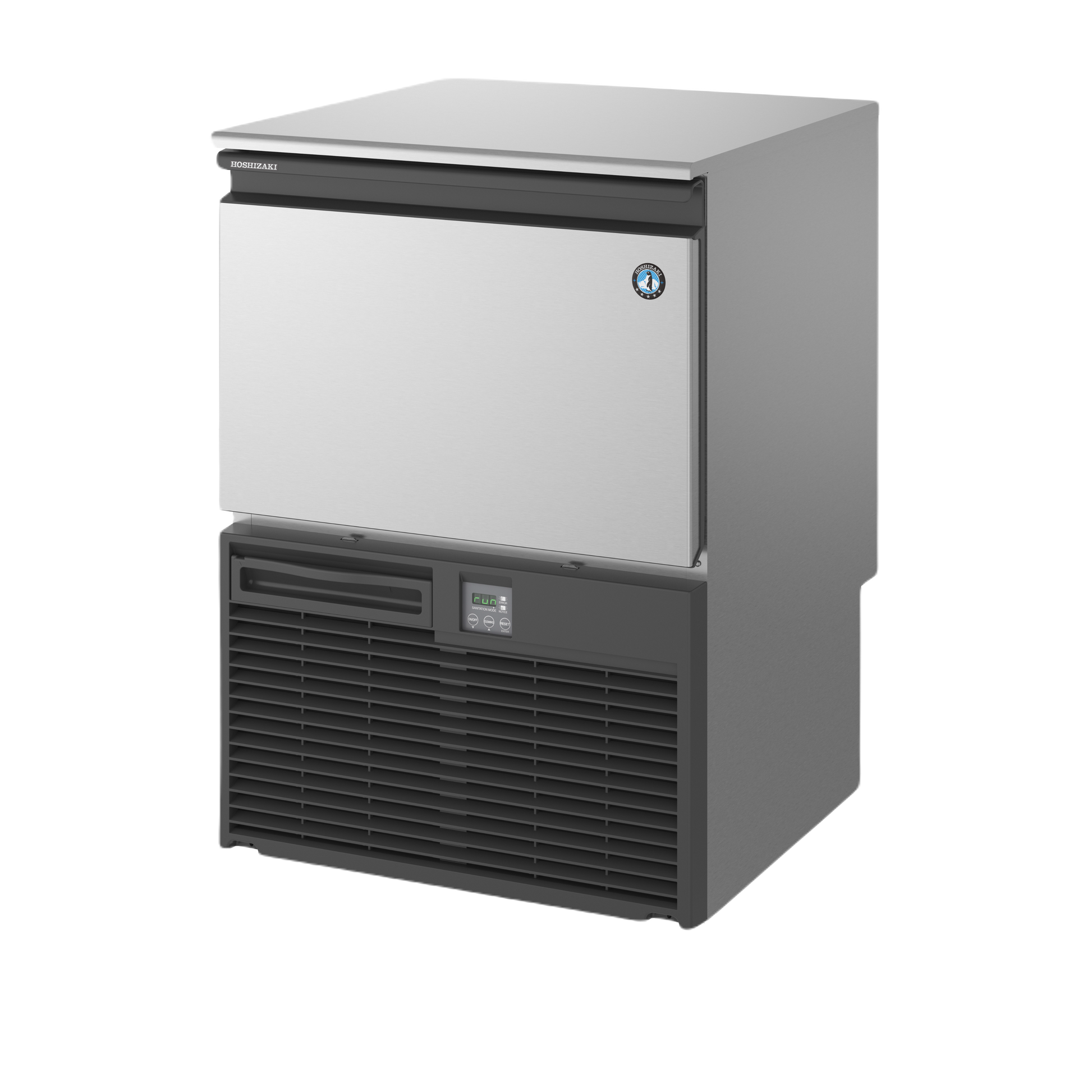

Hoshizaki KM-60C-HC DRAIN PUMP Crescent Edge Ice Maker – 52kg/24hr

The Hoshizaki KM-60C-HC DRAIN PUMP is a self-contained Crescent Edge ice maker, capable of producing up to 52kg of high-quality ice per 24 hours. Built for hygiene and performance, it fits seamlessly into a wide range of commercial kitchen operations.

Part of the KM Edge series, this model features an enlarged, bonded evaporator surface that speeds up the ice harvest cycle—delivering more ice, faster, to increase your serving capacity when you need it most.

Key Features:

Ice Production Capacity:
– Approx. 52kg/24hr @ 21°C air / 15°C water
– Approx. 37kg/24hr @ 32°C air / 21°C water

Storage Bin Capacity: Approx. 23kg

Freeze Cycle Time: Approx. 26 minutes

Ice Output per Cycle: Approx. 0.96kg / 110 pieces

Cooling System: Air-cooled

Refrigerant: R290 / 90g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug

Amperage: Running: 1.6A / Starting: 8.5A

Operating Conditions:
– Ambient Temp: 7–38°C
– Water Temp: 7–32°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 605mm
– Depth: 610mm
– Height: 842mm with hex bolt legs / 988mm with 150mm adjustable legs

Net Weight: 45kg / Packed Weight: 57kg

Optional Accessories:

87000104 Low Capacity Water Filter System

87000106 320mm Replacement Cartridge

87000148 Water Filter Kit & Gauge

87000146 Water Filter

81000116 Stainless Steel Hose

95001013 Adjustable Leg
