KM-40C-HC DRAIN PUMP

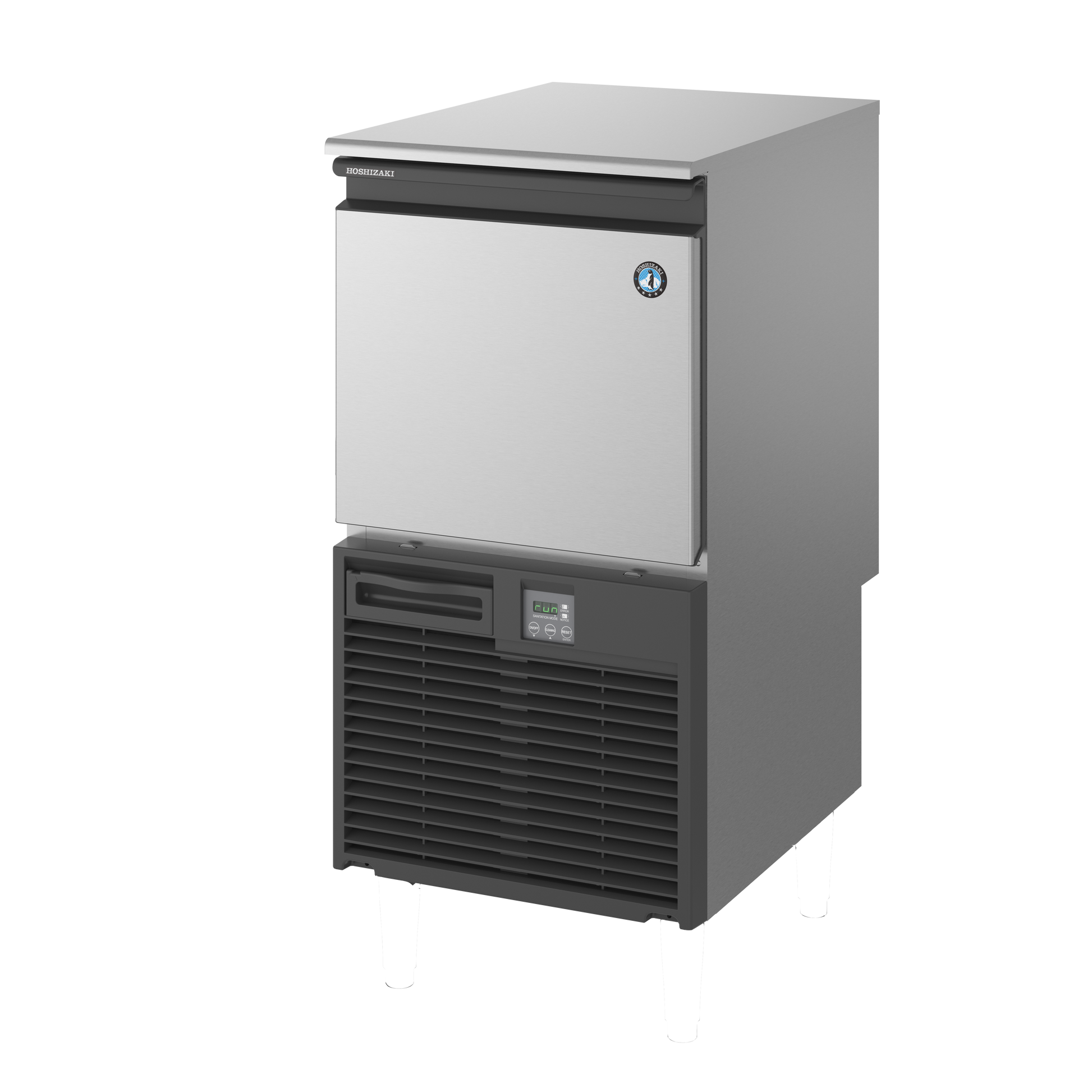

Hoshizaki KM-40C-HC DRAIN PUMP Crescent Edge Ice Maker – 41kg/24hr

The Hoshizaki KM-40C-HC DRAIN PUMP is a compact, self-contained Crescent Edge ice maker producing up to 41kg of high-quality ice per 24 hours. Built to meet strict hygiene standards and fit seamlessly into a variety of kitchen layouts, it’s ideal for commercial environments that demand reliable and efficient ice production.

Part of the advanced KM Edge range, this unit features an enlarged, bonded evaporator surface to accelerate harvest cycles, delivering more ice in less time—perfect for boosting service capacity during peak periods.

Key Features:

Ice Production Capacity:
– Approx. 41kg/24hr @ 21°C air / 15°C water
– Approx. 33kg/24hr @ 32°C air / 21°C water

Storage Bin Capacity: Approx. 16kg

Freeze Cycle Time: Approx. 23 minutes

Ice Output per Cycle: Approx. 0.71kg / 80 pieces

Cooling System: Air-cooled

Refrigerant: R290 / 68g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug

Amperage: Running: 1.4A / Starting: 7.7A

Operating Temp Range:
– Ambient: 7–38°C
– Water Supply: 7–32°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 452mm
– Depth: 610mm
– Height: 842mm with hex bolt legs / 988mm with 150mm adjustable legs

Net Weight: 39kg / Packed Weight: 49kg

Optional Accessories:

87000104 Low Capacity Water Filter System

87000106 320mm Replacement Cartridge

87000148 Water Filter Kit & Gauge

87000146 Water Filter

81000116 Stainless Steel Hose

95001013 Adjustable Leg
