ICE MAKER CUBER IM-65NE-LM

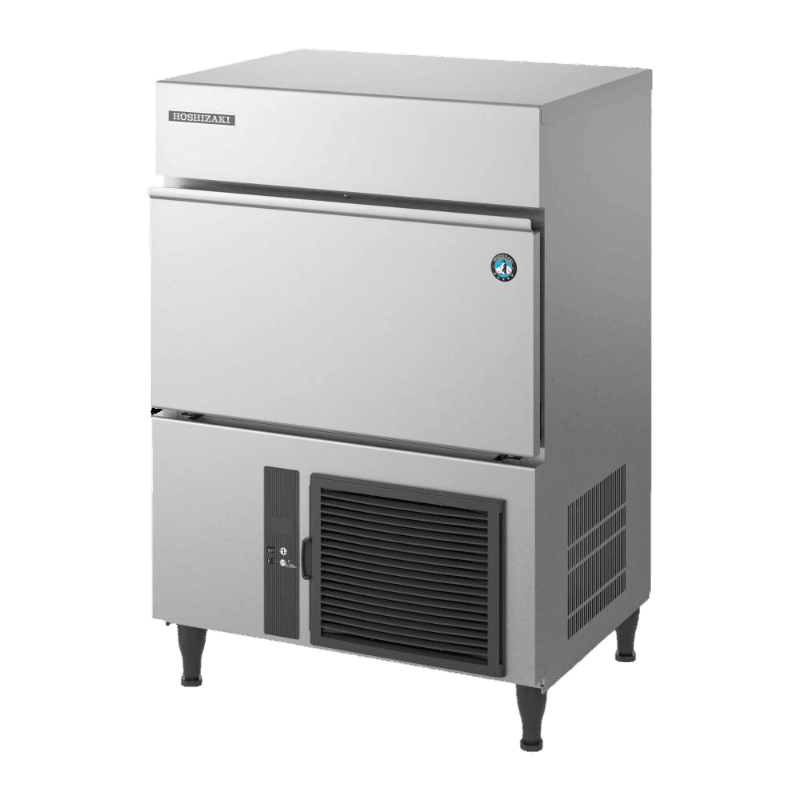

Hoshizaki IM-45CNE Cube Ice Maker – 40kg/24hr

HIGHEST QUALITY ICE

This compact self-contained cube ice maker is part of Hoshizaki’s renowned range of cubers, prioritizing hygiene and reliability. Each cycle is made using fresh water, producing crystal-clear, hard ice cubes that melt slowly—perfect for premium beverage service. With a small footprint and intelligent engineering, this unit is ideal for tight hospitality environments where quality matters.

It features a microcomputer-controlled system for optimal performance, energy-saving circuitry, and multiple inbuilt safety measures. Designed with durable stainless steel, it also includes an easy-to-clean air filter and an auto rinse and flush cycle for added hygiene.

Key Features:

Fresh water for every cycle ensures purity

Slow-melting, precision-formed hard cubes

Smart control system reduces energy and water usage

Freeze backup timer, defrost protection, low voltage/high amp safeguard

7-segment operational display panel

Closed cell water circuit to protect against contamination

Auto rinse and flush cycle

Durable stainless steel exterior

Air filters accessible from the front

3-year parts & labour warranty; 5-year compressor parts warranty

Ice Production Capacity:
– Approx. 40kg/24hr @ 10°C air / 10°C water
– Approx. 33kg/24hr @ 21°C air / 15°C water
– Approx. 25kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 62 minutes
Ice Output per Cycle: Approx. 1.44kg / 12 cubes

Cooling System: Air-cooled
Refrigerant: R134a / 230g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 2.5A / Starting: 15A
Voltage Range: ±6%

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Dimensions:
– Width: 633mm
– Depth: 506mm
– Height: 950mm (includes 90–125mm legs)

Net Weight: 53kg / Packed Weight: 61kg
