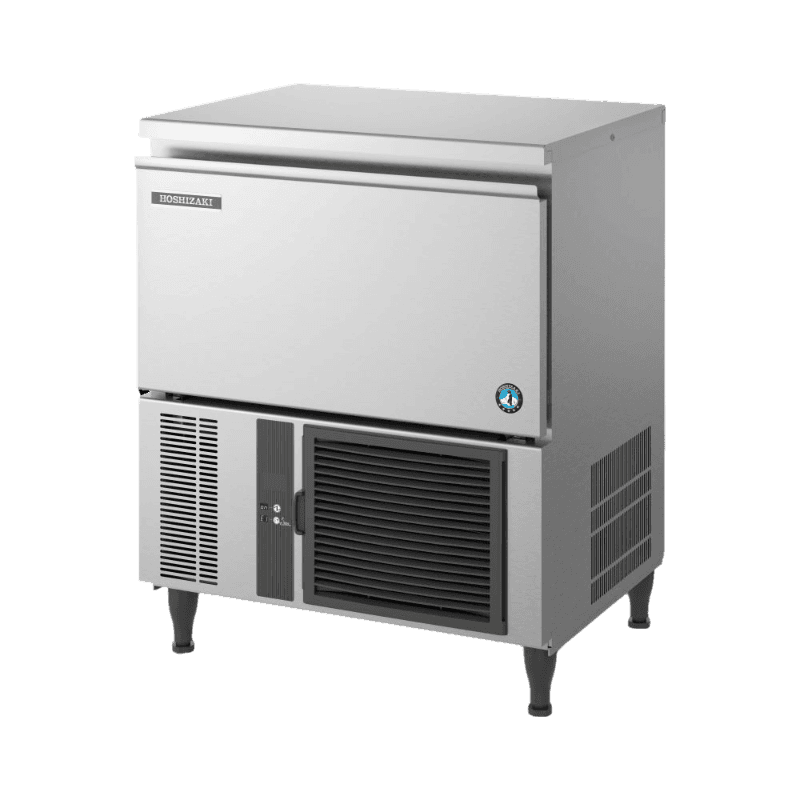

ICE MAKER CUBER IM-45CNE-25

Hoshizaki Cube Ice Maker with Bin – 35kg/24hr

SLOW MELT RATE

This ice maker is part of a premium range of cubers, designed with hygiene as a top priority. Each cycle is made with fresh water, producing ice that’s clear, dense, and melts slowly—ideal for cocktails and high-end beverage presentation.

The cubes are known for their precise shape and slow dilution, protecting the integrity and flavor of drinks. This model is compatible with Hoshizaki storage bins and can be stacked to expand capacity, making it suitable for bars, cafés, and boutique venues.

Key Features:

Ice Production Capacity:
– Approx. 35kg/24hr @ 10°C air / 10°C water
– Approx. 32kg/24hr @ 21°C air / 15°C water
– Approx. 27kg/24hr @ 32°C air / 21°C water

Max Storage Capacity: Approx. 15kg (Bin Control Setting: ~8kg)
Freeze Cycle Time: Approx. 22 minutes
Ice Output per Cycle: Approx. 0.55kg / 42 pieces

Cooling System: Air-cooled
Refrigerant: R134a / 160g

Electrical:
– 220–240V, 50Hz, 1 Phase / 10 Amp Plug
– Amperage: Running: 2.4A / Starting: 13A

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)
– Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 633mm
– Depth: 511mm
– Height: 780mm (Includes 90mm–125mm adjustable legs)

Net Weight: 48kg / Packed Weight: 56kg

Optional Accessories:

87000104 Low Capacity Water Filter System

87000106 320mm Replacement Cartridge

87000148 Water Filter Kit & Gauge

87000146 Water Filter

81000116 Stainless Steel Hose

95001013 Adjustable Leg
