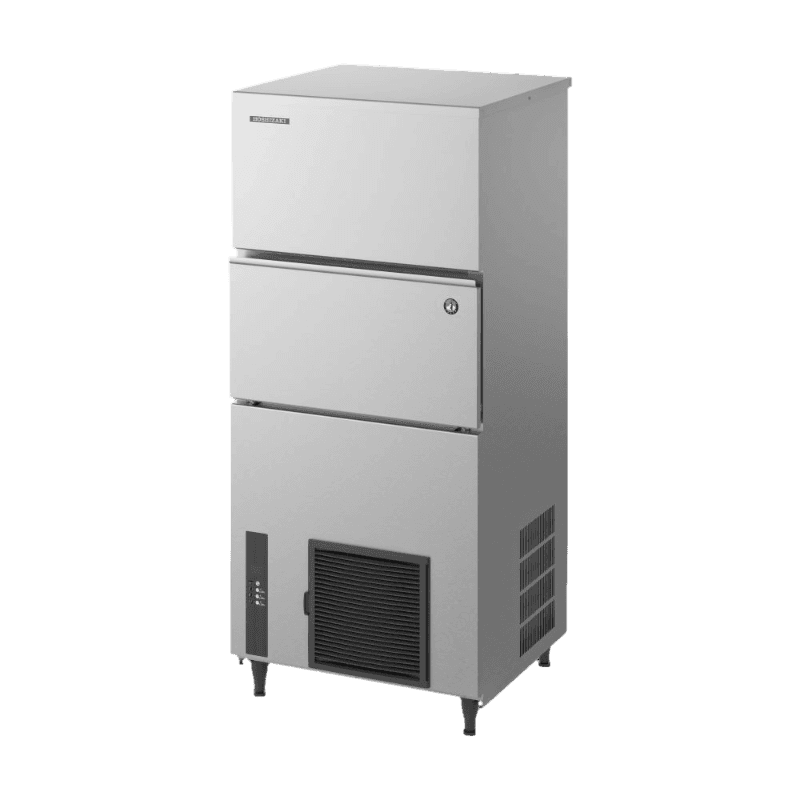

ICE MAKER CUBER IM-240NE-28

Hoshizaki IM-240XNE Modular Cube Ice Maker – 220kg/24hr

HIGHEST QUALITY ICE

This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by their precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink.

This model is configured with our storage bins and can be stacked to multiply ice production. It features a new intelligent control circuit dedicated to saving power and water consumption.

Smart Features:

Microcomputer controller optimises performance under all conditions

Inbuilt safety features: backup timers, defrost management, voltage and amp protection

New 7-segment operational display for easy monitoring

Unique closed-cell water circuit for contamination prevention

Durable stainless steel exterior

Easy-access air filters for reduced service costs

Exceptionally hard, slow-melting crystal-clear cubes

Automatic rinse and flush cycle

Warranty: 3-year parts & labour on entire unit, 5-year (parts only) on compressor & condenser coil

Key Features:

Ice Production Capacity:
– Approx. 220kg/24hr @ 10°C air / 10°C water
– Approx. 205kg/24hr @ 21°C air / 15°C water
– Approx. 160kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 20 minutes
Ice Output per Cycle: Approx. 3.2kg / 140 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 500g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 6.6A / Rated: 6.6A / Starting: 35A

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)
– Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 704mm
– Depth: 665mm
– Height: 1580mm (Includes 70–110mm legs)

Net Weight: 111kg / Packed Weight: 128kg
