HOSHIZAKI

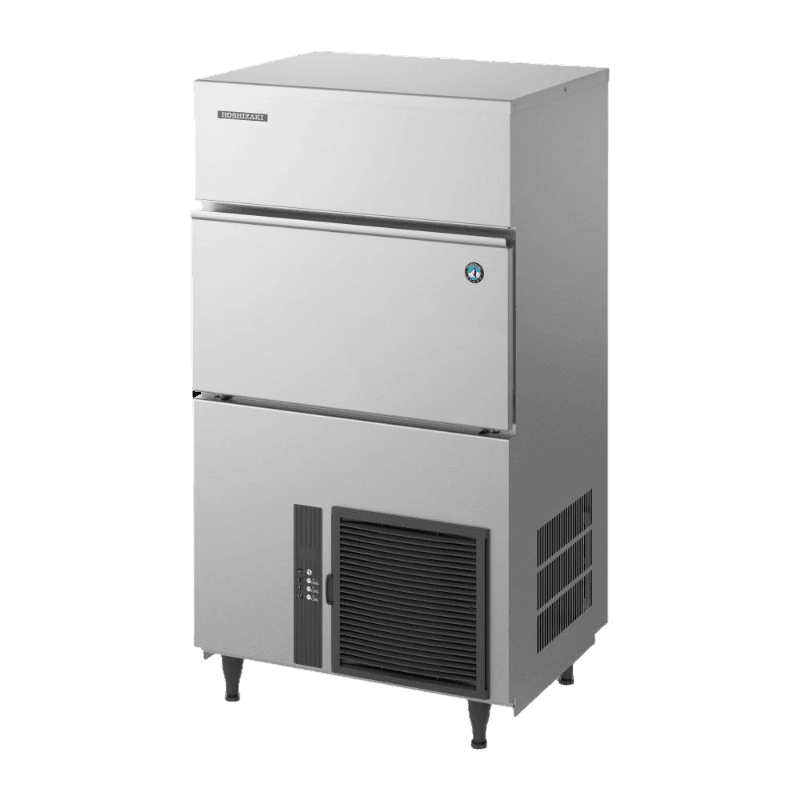

ICE MAKER CUBER IM-130NE-28

ICE MAKER CUBER IM-130NE-28

Regular price $6,923.00
Regular price RRP: $8,600.00 Sale price $6,923.00
ex GST
Sale Sold out

You Save: $1,677.00 (19%)

SKU: SKU: 91000106

Hoshizaki IM-130NE-21 Modular Cube Ice Maker – 100kg/24hr

HIGHEST QUALITY ICE

This self-contained cube ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by their precise shape, clarity, and slow dilution. This is particularly important for ice used in premium beverages like cocktails, as it protects the integrity and flavour of the drink.

Key Features:

Ice Production Capacity:
– Approx. 100kg/24hr @ 10°C air / 10°C water
– Approx. 104kg/24hr @ 21°C air / 15°C water
– Approx. 88kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 22 minutes
Ice Output per Cycle: Approx. 1.8kg / 80 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 380g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 4.5A / Rated: 4.5A / Starting: 19A

Power Requirements:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)
– Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 704mm
– Depth: 506mm
– Height: 1270mm (Includes 70–110mm legs)

Net Weight: 76kg / Packed Weight: 85kg

Additional Compatible Parts:
– 87000105 High Capacity Water Filter System
– 87000149 Water Filter System & Gauge
– 81000116 Stainless Steel Hose
– 95001013 Adjustable Leg
