ICE MAKER CRESCENT KM-590DJ-S

Hoshizaki KM-590DJ-S Modular Crescent Ice Maker – 590kg/24hr

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear, hard crescent ice per day and is compatible with a variety of Hoshizaki ice storage bins, offering flexibility for high-demand commercial environments.

Powered by Hoshizaki’s advanced CycleSaver® technology, this unit features a stainless steel, double-sided evaporator that produces ice on both sides, increasing output and efficiency. It’s an excellent choice for fast-paced venues such as nightclubs, sports stadiums, and entertainment facilities.

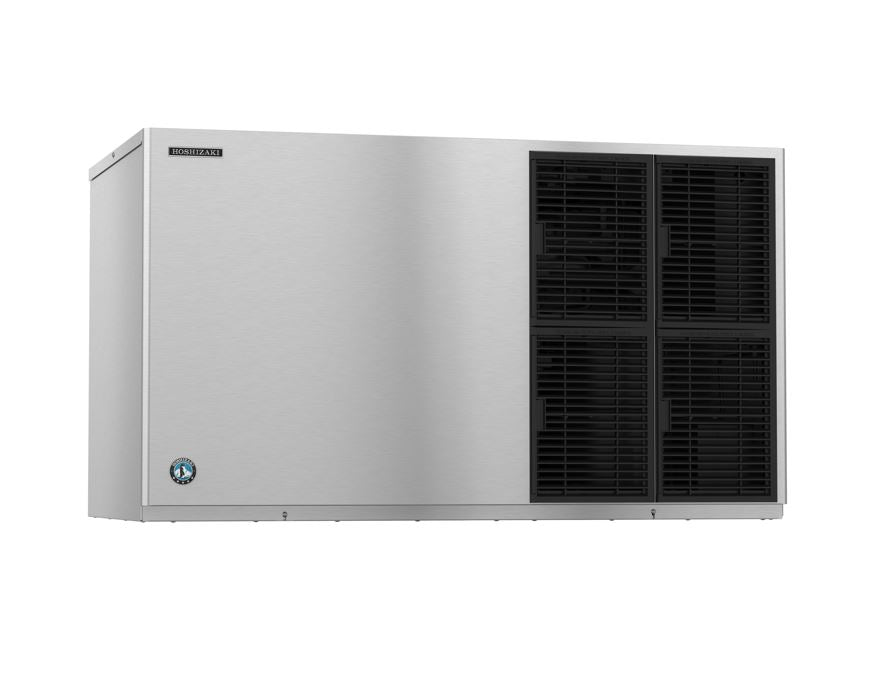

Disclaimer: Image shows the Hoshizaki KM-590DJ-S with Hoshizaki Ice Bin (Bin SOLD SEPARATELY).

Key Features:

Ice Production Capacity:
– Approx. 630kg/24hr @ 10°C air / 10°C water
– Approx. 590kg/24hr @ 21°C air / 15°C water
– Approx. 500kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 28 minutes
Ice Output per Cycle: Approx. 12.9kg / 1,440 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 1,900g

Electrical:
– 220–240V, 50Hz, 1 Phase / 15 Amp Plug
– Amperage: Running: 11.35A / Starting: 58A
– Power Consumption: 2,080W (at 32°C air / 21°C water)

Water Consumption: Approx. 1.15m³/day (at 21°C air / 15°C water)

Operating Conditions:
– Ambient Temp: 7–38°C
– Water Temp: 7–32°C
– Water Pressure: 0.07–0.78MPa (0.7–7.8 bar)
– Voltage Range: 198–254V

Dimensions:
– Width: 1219mm
– Depth: 695mm
– Height: 695mm

Net Weight: 136kg / Packed Weight: 160kg

Recommended Accessories & Installation Kits:

Ice Storage Bins: 91000053, 91000054

Dispensers: 91000130, 91000100 (Hotel/Motel), 91000063

Top Kit: 64000088

Adjustable Leg: 95001013

Water Filter Kit: 87000123

450mm Replacement Cartridge: 87000107

Water Filter System & Gauge: 87000149

Stainless Steel Hose: 81000116

Installation Kit: 6000036

Compatible Water Filter: HLF32 Twin Filter System (sold separately)
