ICE MAKER CRESCENT KM-470AJ-S

Hoshizaki KM-470AJ-S Modular Crescent Ice Maker – 480kg/24hr

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KM-470AJ-S ice machine delivers up to 480kg of clear, hard crescent ice per day, making it an excellent choice for high-demand environments. With a wide selection of compatible ice storage bins, it’s tailored to suit a variety of commercial applications.

Powered by CycleSaver® technology, this unit features a stainless steel, double-sided evaporator that produces ice on both sides, resulting in more ice in less time—ideal for fast-paced venues such as nightclubs, sporting arenas, and entertainment events.

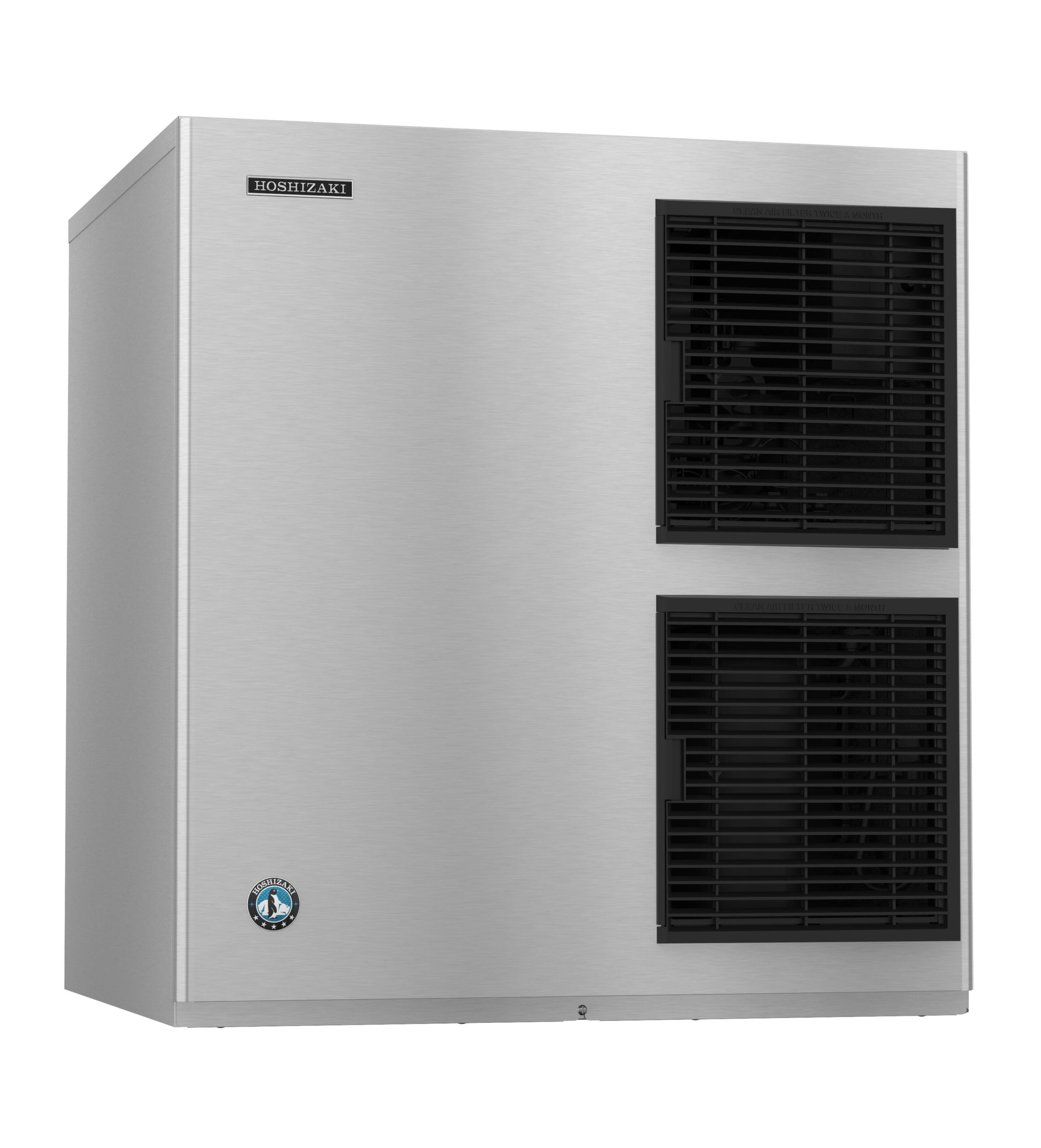

Disclaimer: Image shows the KM-470AJ-S with Hoshizaki Ice Bin (Bin SOLD SEPARATELY).

Key Features:

Ice Production Capacity:
– Approx. 495kg/24hr @ 10°C air / 10°C water
– Approx. 480kg/24hr @ 21°C air / 15°C water
– Approx. 380kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 24 minutes

Ice Output per Cycle: Approx. 9.7kg / 960 pieces

Cooling System: Air-cooled

Refrigerant: R404A / 1,400g

Electrical: 220–240V, 50Hz, 1 Phase / 15 Amp Plug

Amperage: Running: 11.2A / Starting: 55A

Power Consumption: 1,850W (at 32°C air / 21°C water)

Water Consumption: Approx. 1.02m³/day (at 21°C air / 15°C water)

Operating Conditions:
– Ambient Temp: 7–38°C
– Water Temp: 7–32°C
– Water Pressure: 0.07–0.78MPa (0.7–7.8 bar)
– Voltage Range: 198–254V

Dimensions:
– Width: 762mm
– Depth: 695mm
– Height: 825mm

Net Weight: 122kg / Packed Weight: 142kg
