ICE MACHINE KMD-270AB (SS)

Hoshizaki KMD-270AB Modular Crescent Ice Maker – 221kg/24hr

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KMD-270AB ice machine produces up to 221kg of clear, hard crescent ice per day. It features a double-sided stainless steel evaporator that reduces the number of freeze cycles required, helping to lower energy consumption.

With CycleSaver® technology, this unit delivers more ice using less energy, while cycling half as often as conventional ice makers.

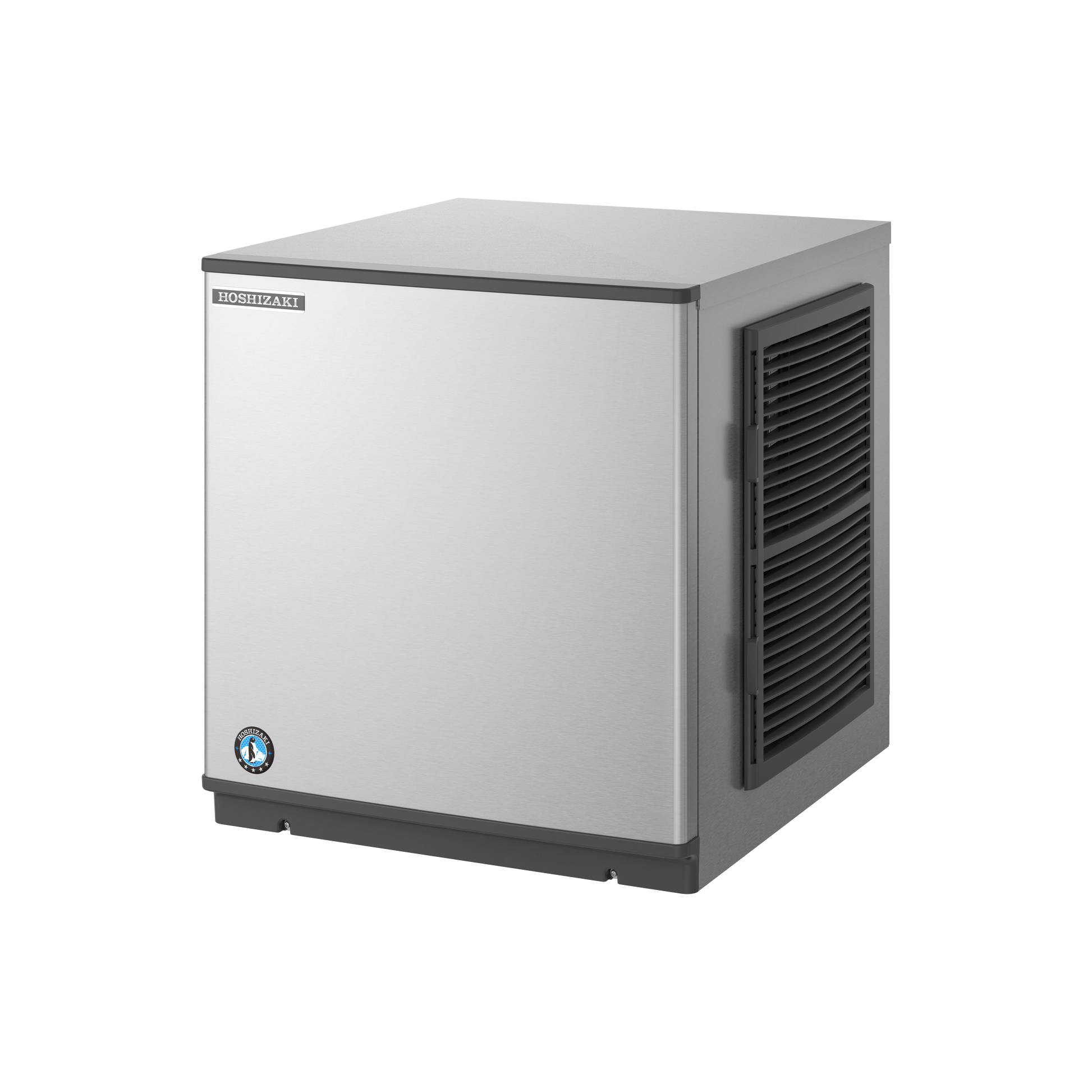

Disclaimer: Image displays the KMD-270AB with Hoshizaki Ice Bin (Bin SOLD SEPARATELY).

Key Features:

Ice Production Capacity:
– Approx. 275kg/24hr @ 10°C air / 10°C water
– Approx. 255kg/24hr @ 21°C air / 15°C water
– Approx. 221kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 26.8 minutes

Ice Output per Cycle: Approx. 5.3kg / 572 pieces

Cooling System: Air-cooled

Refrigerant: R404A / 780g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug

Amperage: Running: 4.9A / Starting: 24A

Operating Conditions:
– Ambient Temp: 7–40°C
– Water Temp: 7–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 560mm
– Depth: 625mm
– Height: 610mm

Net Weight: 57kg / Packed Weight: 73kg

Compatible Ice Storage Bins & Dispensers:

91000025 / 91000026 / 91000027 / 91000053 / 91000054 Ice Storage Bins

91000100 Hotel/Motel Ice Dispenser

91000130 / 91000131 / 91000063 Dispensers

Optional Accessories:

96000006 / 96000007 / 96000008 / 96000009 / 64000088 Top Kits

87000123 Water Filter Kit – Twin 450mm cartridges

87000107 450mm Replacement Cartridge

87000149 Water Filter System & Gauge

81000116 Stainless Steel Hose

95001013 Adjustable Leg
