ICE MACHINE KMD-201AB (SS)

Hoshizaki KMD-201AB Modular Crescent Ice Maker – 200kg/24hr

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KMD-201AB is a high-capacity modular ice maker that produces clear, crescent-shaped ice—perfect for a wide range of commercial and hospitality applications. Its double-sided stainless steel evaporator allows for faster freezing cycles, requiring fewer cycles to fill the bin and reducing energy consumption overall.

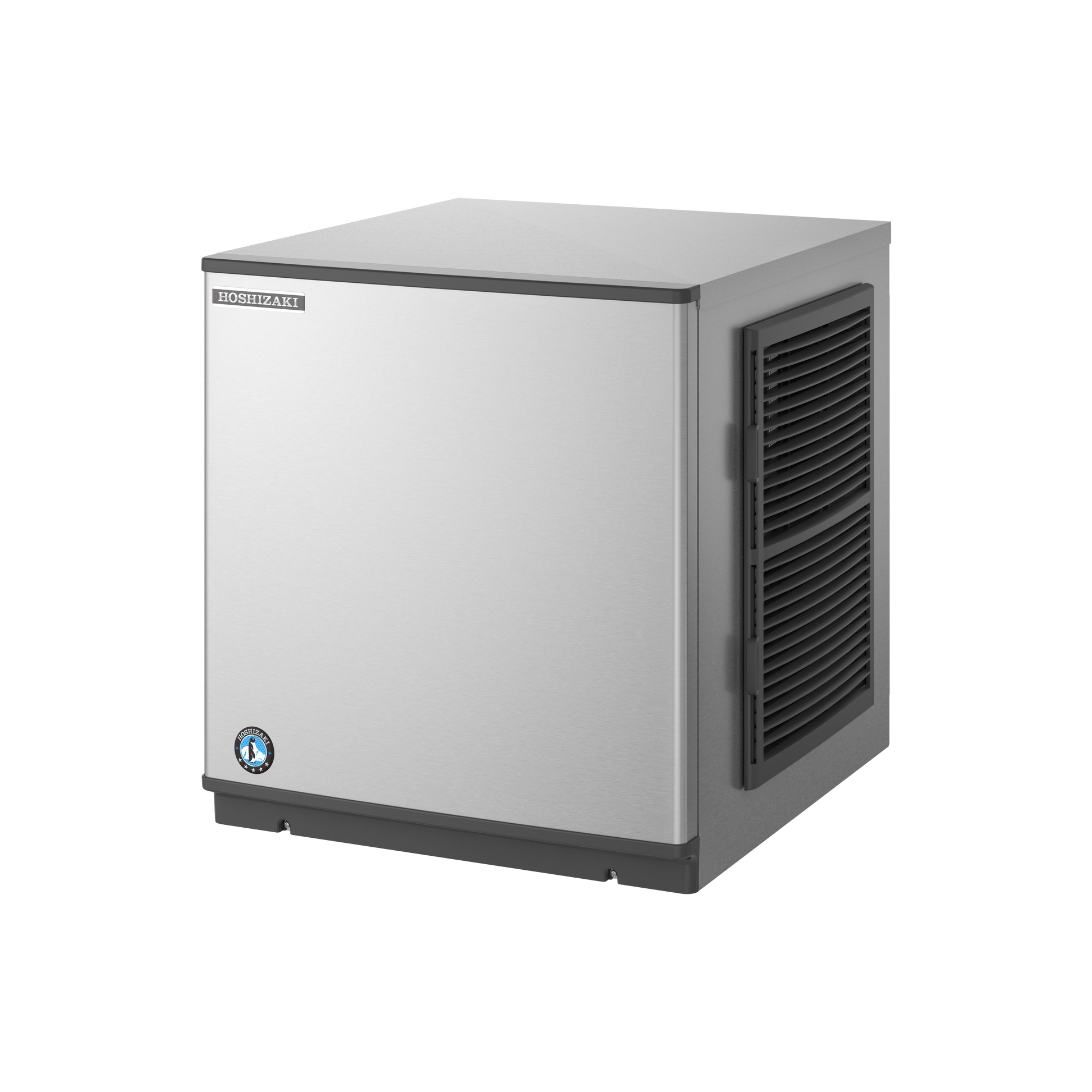

Note: Image shows the KMD-201AB with Hoshizaki Ice Bin (Bin SOLD SEPARATELY).

Key Features:

Ice Production Capacity:
– Approx. 200kg/24hr @ 10°C air / 10°C water
– Approx. 175kg/24hr @ 21°C air / 15°C water
– Approx. 140kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 30.5 minutes

Ice Output per Cycle: Approx. 3.7kg / 416 pieces

Cooling System: Air-cooled

Refrigerant: R404A / 520g

Electrical: 220–240/230V, 50/60Hz, 1 Phase

Amperage: Running: 3.0A / Starting: 25A

Operating Conditions:
– Ambient Temp: 7–40°C
– Water Temp: 7–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Voltage Range: Rated Voltage ±6%

Dimensions:
– Width: 560mm
– Depth: 625mm
– Height: 610mm

Net Weight: 57kg / Packed Weight: 73kg

Compatible Ice Storage Bins & Dispensers:

91000025 / 91000026 / 91000027 / 91000053 / 91000054 Ice Storage Bins

91000100 Hotel/Motel Ice Dispenser

91000130 / 91000131 / 91000063 Dispensers

Optional Accessories:

96000006 / 96000007 / 96000008 / 96000009 / 64000088 Top Kits

87000123 Water Filter Kit – Twin 450mm cartridges

87000107 450mm Replacement Cartridge

87000149 Water Filter System & Gauge

81000116 Stainless Steel Hose

95001013 Adjustable Leg
