ICE MACHINE IM-240XNE

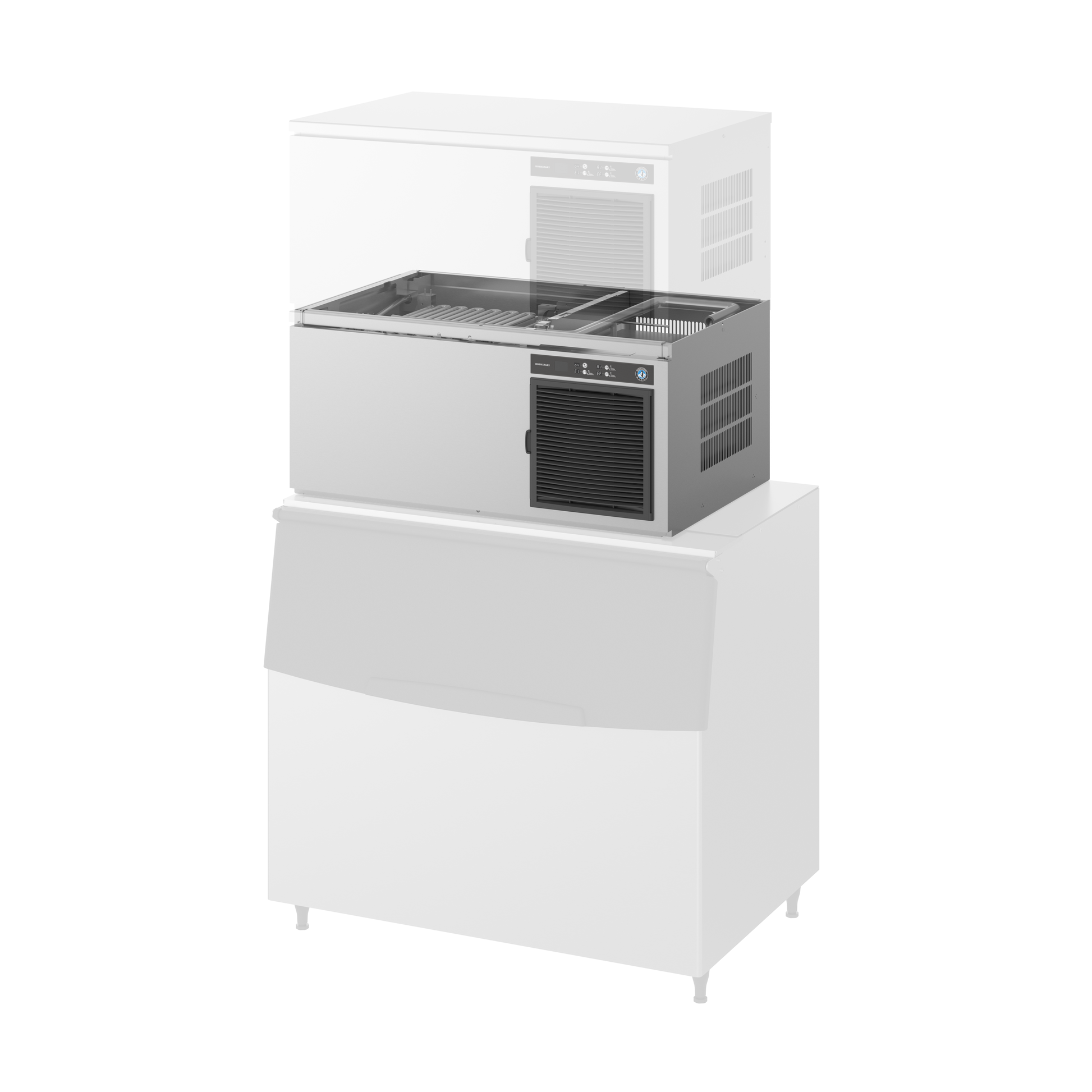

Hoshizaki IM-240XNE Modular Cube Ice Maker – 205kg/24hr

HIGHEST QUALITY ICE

The Hoshizaki IM-240XNE is a modular cube ice maker capable of producing up to 205kg of premium-quality cube ice per 24 hours. Engineered for reliability and efficiency, it features a high-performance automated control system that adjusts to changing conditions without manual intervention. This results in consistently high yields of crystal-clear, slow-melting cubes ideal for premium beverages.

Its plug-and-play modular design allows for easy stacking and connection to compatible storage bins, making it highly versatile for different commercial environments.

Key Features:

Individually formed cubes: clear, hard, and slow to melt

Intelligent power and water-saving control circuit

Unique closed-cell water circuit for superior hygiene

Auto rinse and flush cycle for optimal sanitation

Microcomputer-controlled performance

Safety features: freeze cycle backup, defrost protection, low voltage and high amp monitoring

Easily accessible air filters on front panel

Durable stainless-steel construction

Stackable and compatible with modular bins and bases

Includes ice chute for simple, quick installation

Ice Production Capacity:
– Approx. 205kg/24hr @ 21°C air / 15°C water
– Approx. 160kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 19 minutes
Ice Output per Cycle: Approx. 3.2kg / 140 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 480g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 6.6A
Voltage Range: Rated Voltage ±6%

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Dimensions:
– Width: 1084mm
– Depth: 700mm
– Height: 500mm

Net Weight: 84kg / Packed Weight: 98kg

Storage Bin: Select compatible bin and kit separately
