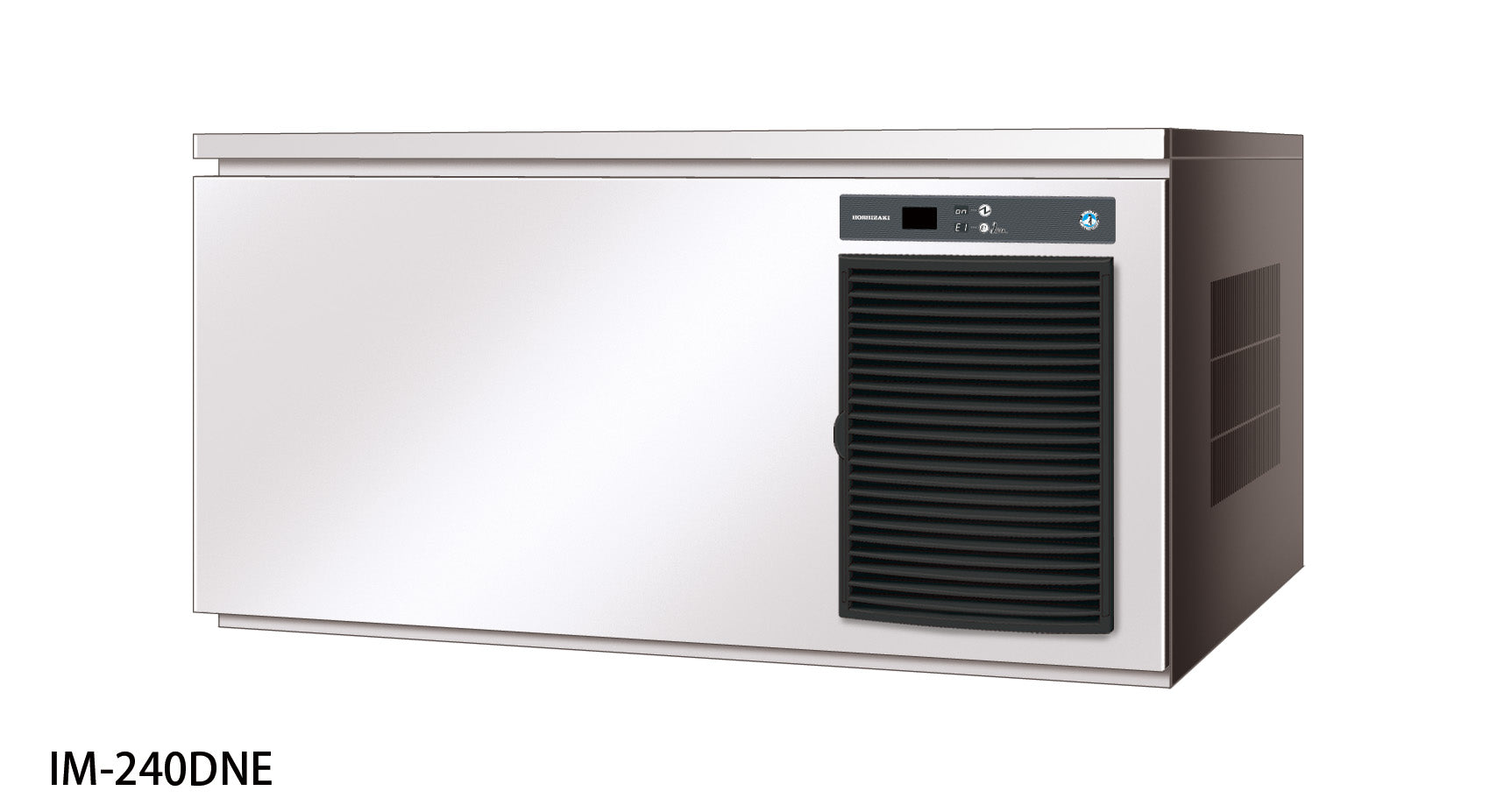

ICE MACHINE IM-240DNE

Hoshizaki IM-240DEXD Modular Cube Ice Maker – 220kg/24hr (Stacked)

HIGHEST QUALITY ICE

This stackable modular ice maker is part of a unique range of cubers, designed with hygiene as a priority. Each ice cycle is made with freshwater, ensuring only the highest quality of ice. The cubes are easily recognized by their precise shape, clarity, and slow dilution. This is especially important for use in premium beverages like cocktails, as it helps maintain the integrity and flavour of the drink.

This model features a new intelligent control circuit for saving power and water, a microcomputer-controlled ice production system, and a 7-segment display for easy operation. It produces exceptionally hard, slow-melting crystal-clear cubes and includes an auto rinse and flush cycle.

Key Features:

Unique closed cell water circuit for contamination protection

Easily accessible and cleanable air filters

Inbuilt safety: freeze cycle backup, defrost backup, low voltage, high amp protection

Tropical rating: Operates up to 43°C ambient temperature

Durable stainless steel exterior

Warranty: 3-year parts & labour, 5-year (parts only) on compressor and condenser coil

Designed for stacking units vertically

Ice Production Capacity:
– Approx. 220kg/24hr @ 10°C air / 10°C water
– Approx. 205kg/24hr @ 21°C air / 15°C water
– Approx. 160kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 19 minutes
Ice Output per Cycle: Approx. 3.2kg / 140 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 480g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 6.6A / Rated: 6.6A / Starting: 35A

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)
– Voltage Range: Rated Voltage ±6%

Compatible Ice Bins:
91000027, 91000053, 91000054

Dimensions:
– Width: 1084mm
– Depth: 700mm
– Height: 500mm

Net Weight: 88kg / Packed Weight: 101kg
