ICE MACHINE IM-240ANE-28

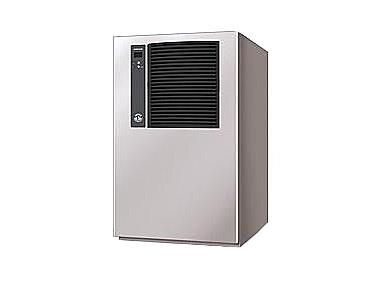

Hoshizaki IM-240DEX Modular Cube Ice Maker – 220kg/24hr

HIGHEST QUALITY ICE

This stackable modular ice maker is part of a unique range of cubers, designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by their precise shape, clarity, and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavour of the drink.

This model is configured with our storage bins and can be stacked to multiply ice production. It features a new intelligent control circuit that saves both power and water.

Smart Features:

Microcomputer-controlled ice making process for peak efficiency

Inbuilt safety: freeze cycle backup, defrost backup, voltage and amp protection

7-segment operational display panel

Unique closed cell water circuit for hygiene and contamination protection

Durable stainless steel exterior

Easy-access air filters reduce servicing

Exceptionally hard, slow-melting crystal-clear cubes

Automatic rinse and flush cycle

Warranty: 3-year parts & labour on entire unit, 5-year (parts only) on compressor & condenser coil
This model achieves production by stacking two units side by side.

Ice Production Capacity:
– Approx. 220kg/24hr @ 10°C air / 10°C water
– Approx. 205kg/24hr @ 21°C air / 15°C water
– Approx. 160kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 20 minutes
Ice Output per Cycle: Approx. 3.2kg / 140 pieces

Cooling System: Air-cooled
Refrigerant: R404A / 480g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 6.6A / Rated: 6.6A / Starting: 35A

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)
– Voltage Range: Rated Voltage ±6%

Compatible Ice Bins:
91000025, 91000026, 91000027, 91000053, 91000054

Dimensions:
– Width: 560mm
– Depth: 700mm
– Height: 880mm

Net Weight: 80kg / Packed Weight: 95kg
