ICE MACHINE BALL IM-65NE-Q

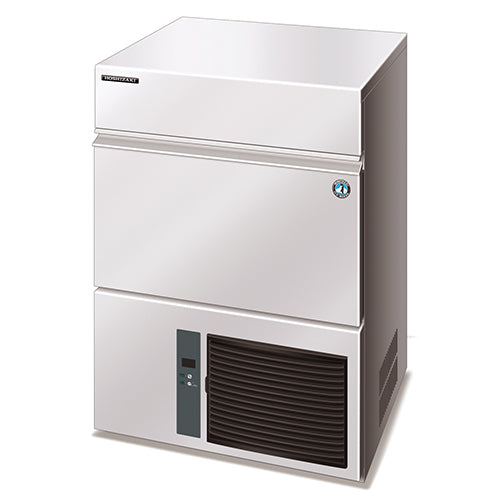

Hoshizaki IM-65NE-Q Ball Ice Maker – 26kg/24hr

CHILL BEVERAGES WITH MINIMAL DILUTION

The Hoshizaki IM-65NE-Q is a self-contained undercounter ball ice maker that delivers pure, round ice spheres ideal for high-end bars and cocktail venues. Producing up to 26kg of ball ice per day and holding 17kg in storage, this model ensures a steady supply of crystal-clear ice balls that melt slowly—preserving drink integrity and enhancing presentation.

Each ball is individually formed using a high-pressure jet spray, and the machine drains and refills after every batch to maintain hygienic, fresh ice production. Built for reliability and performance, the unit is microcomputer controlled and requires no manual adjustment, even under changing conditions.

Key Features:

Perfectly round ball ice made with fresh water

Automatic drain and refill for hygienic cycles

Jet-spray formation for consistent shape and clarity

Microcomputer-controlled performance

Closed water circuit to prevent contamination

Stainless steel exterior with easy-to-clean design

Foam-injected polyurethane insulation (JFC-free)

Removable air filter for simple maintenance

3-year parts & labour warranty, 5-year compressor (parts only)

Ice Production Capacity:
– Approx. 26kg/24hr @ 10°C air / 10°C water
– Approx. 24kg/24hr @ 21°C air / 15°C water
– Approx. 20kg/24hr @ 32°C air / 21°C water

Freeze Cycle Time: Approx. 33 minutes
Ice Output per Cycle: Approx. 0.67kg / 15 ice balls

Cooling System: Air-cooled
Refrigerant: R134a / 200g

Electrical: 220–240V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 2.9A / Starting: 17A
Voltage Range: ±6%

Operating Conditions:
– Ambient Temp: 1–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.07–0.8MPa (0.7–8 bar)

Dimensions:
– Width: 633mm
– Depth: 506mm
– Height: 950mm (includes 90–125mm legs)

Net Weight: 53kg / Packed Weight: 66kg
