ICE DISPENSER DB-200H

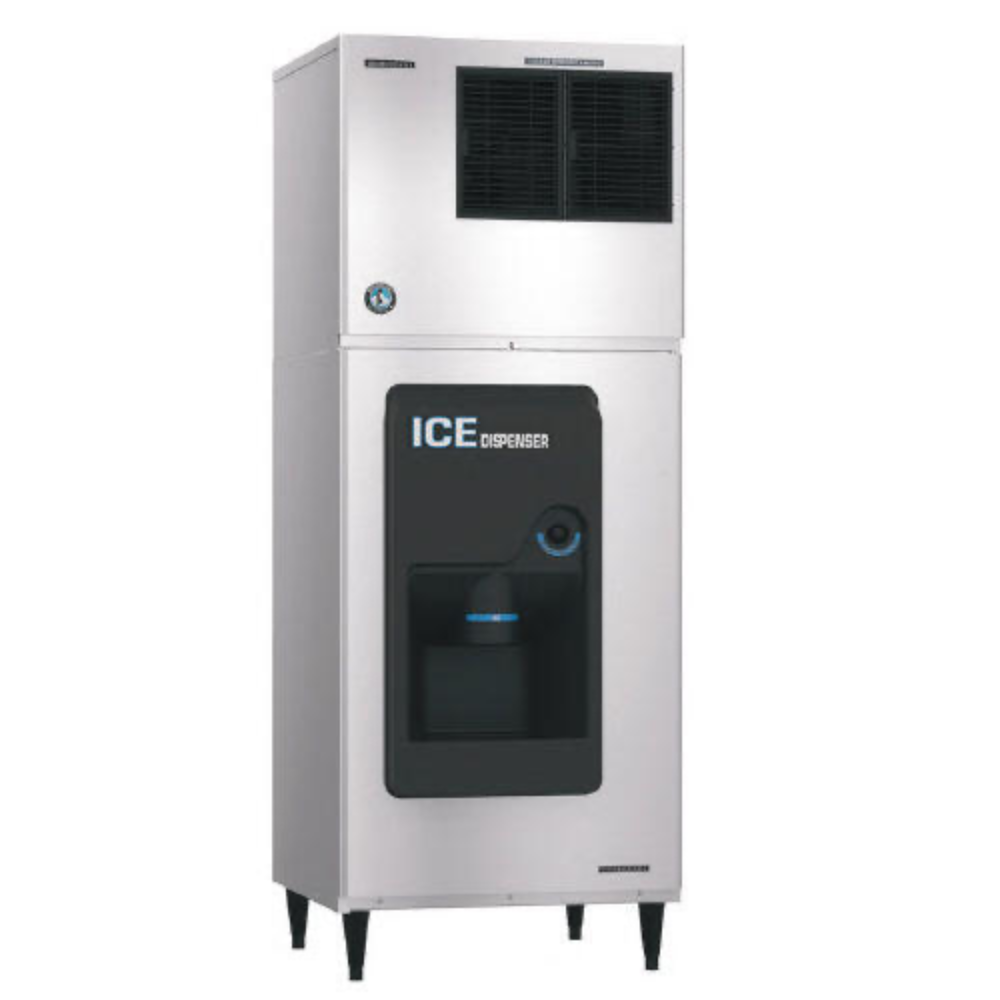

Hoshizaki DB-200H H20 Minesite Crescent Ice & Water Dispenser

USER-FRIENDLY PUSH TO DISPENSE – DESIGNED FOR DEMANDING ENVIRONMENTS

The Hoshizaki DB-200H is a robust ice and water dispenser designed for high-capacity sites such as mines, remote facilities, or large-scale hospitality. With a 91kg storage bin and rapid 5.89kg per minute dispensing rate, it ensures a constant supply of crescent ice and water on demand.

This system utilises Hoshizaki’s unique crescent ice production—crystal-clear, hard, crescent-shaped cubes that last longer in drinks and don’t clump in storage. Its enclosed bin design reduces cross-contamination risk, while the stainless steel evaporator resists caustic water and harsh cleaning agents—delivering industry-leading hygiene and durability.

Key Features:

Fast dispensing rate: up to 5.89kg per minute

2 push buttons: 1 for ice, 1 for water (Single Auger Agitator)

Enclosed bin for cross-contamination prevention

Energy-efficient crescent cube production

Cubes stay separate and don’t clump

Stainless steel evaporator – no flaking, cracking or corrosion

Reusable, easy-clean air filters

Long-life stainless steel body

2-year parts & labour warranty

Ice Storage: Approx. 91kg
Dispense Rate: 5.89kg/minute
Ice Type: Crescent Cube (requires modular head unit – sold separately)

Compatible Ice Maker Heads:
– KMD-201AA
– KMD-270AA
– KM-660MAJ-E
– KM-470AJ-S
(*Top Kit sold separately)

Electrical:
– 1 PHASE 240V / 50Hz / 10 AMP Plug
– Amperage: Rated: 1.4A
– Voltage Range: 104–132V

Operating Conditions:
– Ambient Temp.: 7–38°C

Dimensions:
– Width: 762mm
– Depth: 684mm
– Height: 1346mm (Includes 152mm legs)

Weight:
– Net: 85kg / Packed: 130kg

Bin Capacity Volume: 5.72 ft³
