FLAKER FM-480AKE

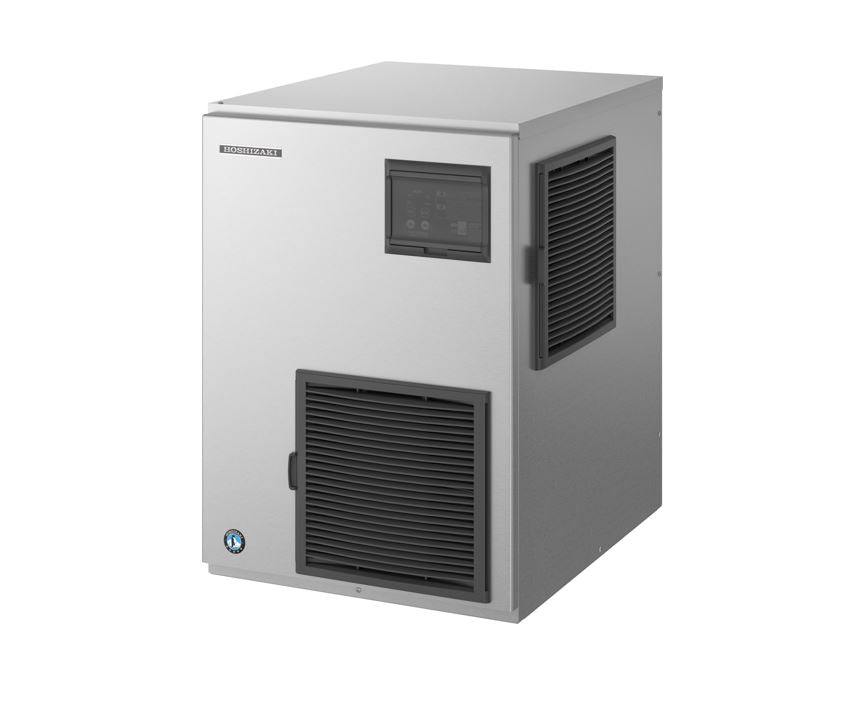

Hoshizaki FM-500AKE Flake Ice Maker – 500kg/24hr

PURE & COOL ICE MACHINE

The Hoshizaki FM-500AKE is a high-performance flake ice maker producing up to 500kg of premium-quality ice every 24 hours. Flake ice consists of 70% ice and 30% water, making it ideal for healthcare, catering, seafood display, supermarkets, and cocktail bars. With its hygienic production and cooling power, flake ice is perfect for food preservation and medical transport applications.

This machine features an advanced auger system, ensuring water consumption is equal to ice production. "Freeze Burn" is eliminated, preserving the appearance and freshness of displayed goods. The durable carbon auger bearings reduce long-term maintenance costs.

The FM-500AKE includes automatic flushing for cleanliness, an operational status display for easy troubleshooting, and the option to convert to nugget ice by changing the extruding head and cutter (sold separately).

Key Features:

Produces soft, moldable flake ice (70% ice, 30% water)

Efficient auger system: no wasted water

“Freeze Burn” prevention for fresh produce and seafood

Can be converted to nugget ice (conversion kit sold separately)

Carbon auger bearings for extended life and reduced service costs

Automatic flush system for hygiene

Status display panel for quick diagnostics

2-year parts & labour warranty, 5-year compressor (parts only)

Ice Production Capacity:
– Approx. 500kg/24hr @ 10°C air / 10°C water
– Approx. 425kg/24hr @ 21°C air / 15°C water
– Approx. 325kg/24hr @ 32°C air / 21°C water

Max Storage Capacity: Compatible with:
– 91000025, 91000026, 91000027, 91000053, 91000054 Ice Storage Bins

Cooling System: Air-cooled
Refrigerant: R404A

Electrical: 230V, 50Hz, 1 Phase / 10 Amp Plug
Amperage: Running: 8.4A / Starting: 43A
Voltage Range: ±10%

Operating Conditions:
– Ambient Temp: 5–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.05–0.8MPa (0.5–8bar)

Dimensions:
– Width: 560mm
– Depth: 700mm
– Height: 780mm

Net Weight: 95kg / Packed Weight: 102kg
