FLAKER FM-1000 AKE

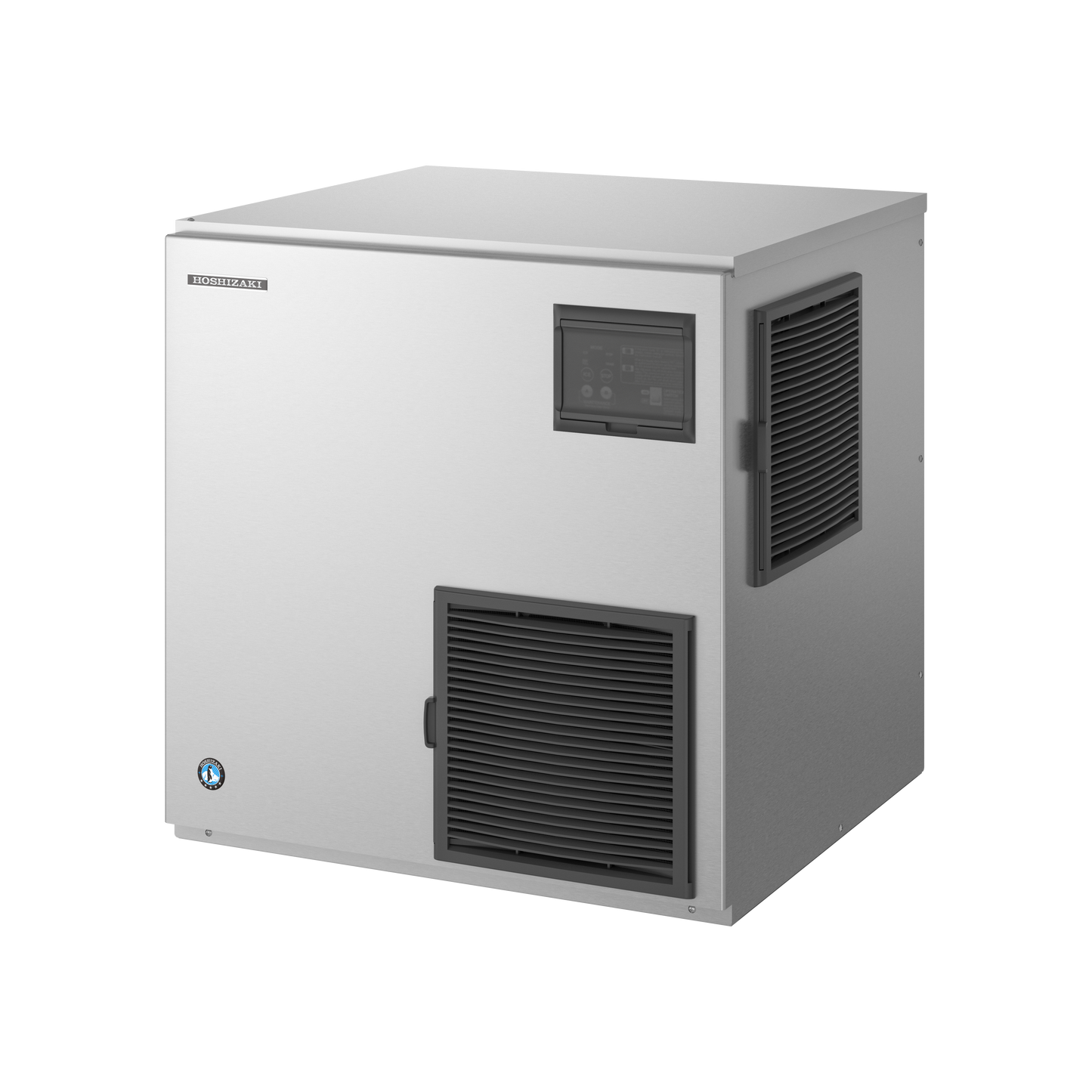

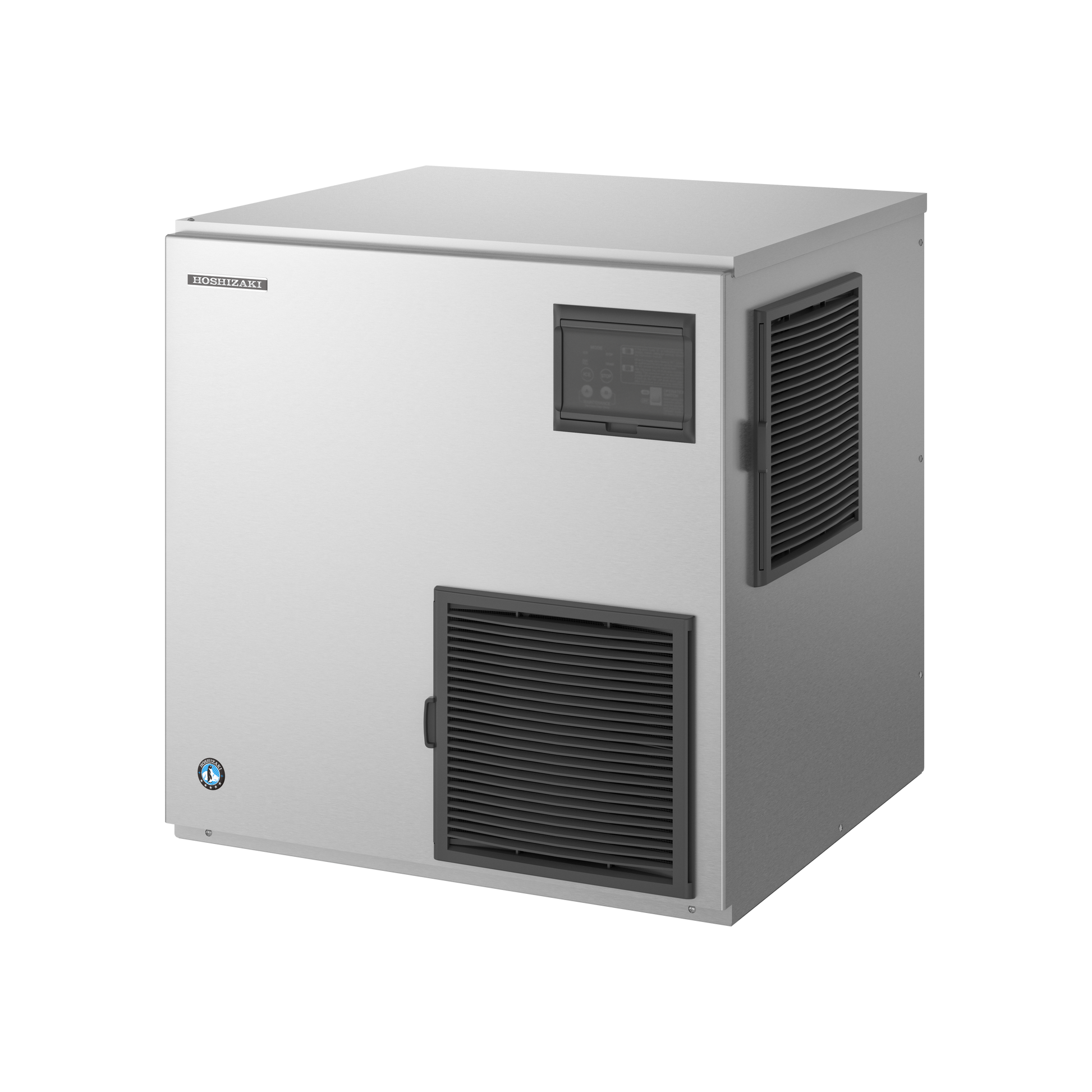

Hoshizaki FM-1200AKE Flake Ice Maker – 1030kg/24hr

PURE & COOL FLAKE ICE MAKER MACHINE

The Hoshizaki FM-1200AKE is a high-output modular flake ice machine capable of producing up to 1030kg of flake ice per 24 hours. Designed for commercial use, this machine produces soft, moldable flake ice that’s ideal for displaying fresh seafood, produce, bottled beverages, and medical transport applications such as organ preservation.

Using an efficient auger system, water consumption is equal to ice output, helping reduce utility costs while maintaining hygiene. “Freeze Burn” is eliminated—preserving the freshness and appearance of displayed items.

The FM-1200AKE includes carbon auger bearings for lower maintenance, an automatic flush system for cleanliness, and a status display panel for easier diagnostics. This unit can also be converted to produce nugget ice with an optional extruding head and cutter.

Key Features:

Produces flake ice perfect for food display, medical, or catering use

Auger system ensures equal water-to-ice ratio

“Freeze Burn” prevention preserves freshness

Optional conversion to nugget ice available

Carbon bearings for longer lifespan and reduced maintenance

Automatic flush cycle keeps system clean

Operational status panel assists in troubleshooting

2-year parts & labour warranty, 5-year compressor (parts only)

Ice Production Capacity:
– Approx. 1030kg @ 10°C air / 10°C water
– Approx. 890kg @ 21°C air / 15°C water
– Approx. 740kg @ 32°C air / 21°C water

Max Storage Bin Compatibility:
– 91000026, 91000027, 91000053, 91000054

Cooling System: Air-cooled
Refrigerant: R404A

Electrical: 220–240V, 50Hz, 1 Phase / 15 Amp Plug
Amperage: Running: 12.5A / Starting: 76A
Voltage Range: Rated Voltage ±10%

Operating Conditions:
– Ambient Temp: 5–40°C
– Water Temp: 5–35°C
– Water Pressure: 0.05–0.8MPa (0.5–8bar)

Dimensions:
– Width: 762mm
– Depth: 700mm
– Height: 780mm

Net Weight: 146kg / Packed Weight: 156kg
