DISPENSER DB-200H WORKSITE

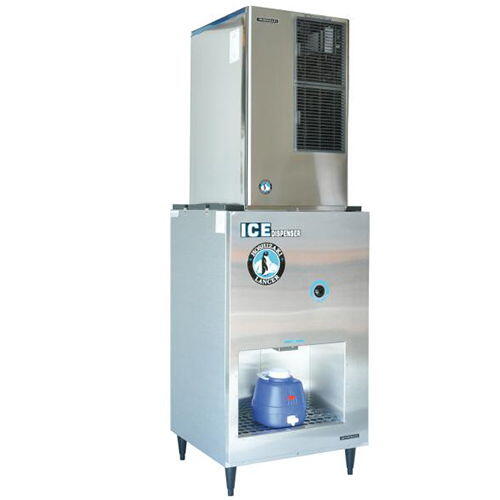

Hoshizaki DB-200H Worksite Crescent Ice & Water Dispenser

USER-FRIENDLY PUSH TO DISPENSE – SANITARY DESIGN FOR HIGH-DEMAND WORKSITES

The Hoshizaki DB-200H Worksite dispenser is built for rugged, high-traffic environments like mining camps and worksites. It stores up to 91kg of crescent ice and dispenses at 5.89kg per minute with the push of a button—perfect for quick, hygienic service in communal settings.

This unit produces crystal-clear, crescent-shaped ice that lasts longer in drinks and doesn’t clump in bins. Hoshizaki’s unique stainless steel evaporator resists harsh cleaning agents and doesn’t crack or peel like traditional nickel-plated versions, reducing downtime and improving hygiene.

Key Features:

Fast dispense rate: 5.89kg/minute

Crescent cube ice – clean, individual, and long-lasting

Push button operation – hygienic and self-service ready

Cycles half as often as traditional systems for greater energy savings

Unique evaporator resists corrosion and cracking

Reusable, easy-clean air filters

Compatible with multiple modular head units (sold separately)

Durable stainless steel construction

Compatible Modular Heads:
– KMD-201AB
– KMD-270AB
– KM-660MAJ-E
– KM-470AJ-S
(*Top Kit sold separately)

Specifications:

Ice Storage Capacity: Approx. 91kg

Dispensing Rate: 5.89kg per minute

Dimensions (WxDxH): 762mm x 684mm x 1346mm (includes 152mm legs)

Weight: Net 85kg / Packed 130kg

AC Supply Voltage: 1 PHASE 240V / 50Hz / 10 AMP Plug

Amperage: Rated: 1.4A

Capacity Volume: 5.72 ft³

Operating Conditions:

Ambient Temp.: 7–38°C

Voltage Range: 104–132V
