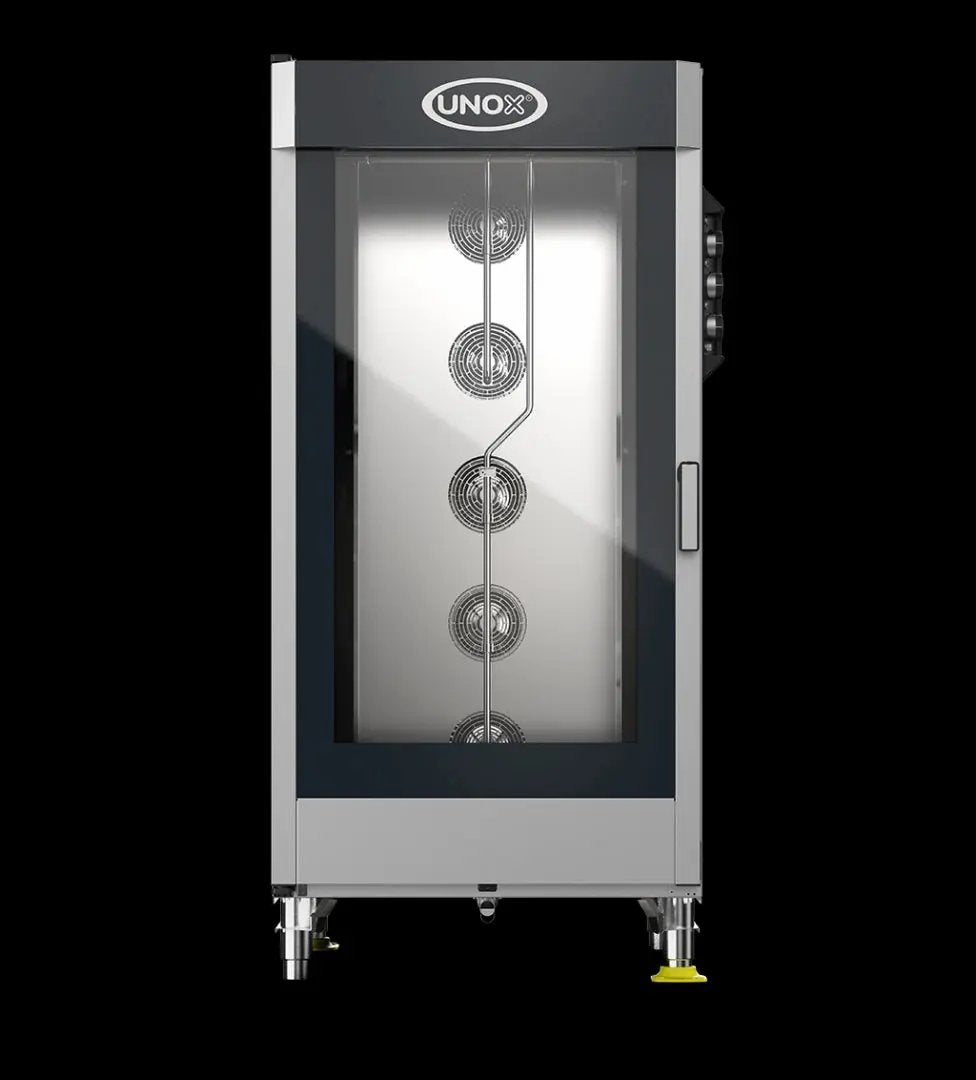

Unox Cheflux 20 (Model: XV4093) – 20 x GN 2/1 Electric Convection Oven
The Cheflux 20 is a robust, no-frills convection oven ideal for high-output kitchens. Designed to deliver maximum productivity with minimal complexity, it’s built for professionals who demand reliable performance at scale.
Key Features:
Tray Capacity: 20 x GN 2/1 trays (equivalent to 40 x GN 1/1)
Control Panel: Manual knob controls for time, temperature, humidity, and fan speed
Unox Intensive Cooking Suite:
- AIR.Plus – reversing, dual-speed fans for even distribution
- STEAM.Plus – on-demand humidity from 90 °C to 260 °C
- DRY.Plus – rapid moisture extraction for superior texture
Cooking Range: 80 °C–260 °C; humidity functions available from 80 °C
Construction: AISI 304 stainless steel chamber with rounded corners, double-glass door, LED lighting, and anti-tip tray supports
Technical Specifications:
Power Supply: 380–415 V 3N~ (3-phase with neutral and earth)
Total Power Consumption: 46.7 kW
Current Draw: Max 72 A; requires 80 A breaker
Voltage Compatibility: 50/60 Hz
Electrical Connection: H07RN‑F 5G 5 16 mm² cable (plug not included)
Water Connection: ¾″ inlet; pressure 150–600 kPa
Maximum Water Consumption: 35 L/h @ 200 kPa
Cavity Size: 700 × 723 × 1471 mm (W×D×H)
Tray Spacing: 66 mm
Overall Dimensions: 913 × 1237 × 1863 mm (W×D×H)
Weight: Approx. 285 kg
Protection Rating: IPX5
Why Buy This Oven:
- No-fuss manual controls for fast, reliable operation
- High throughput capacity—perfect for baking and steaming large batches
- Built tough with quality stainless steel and safety features
- Quality airflow and moisture control with Unox signature cooking systems
